Effective water management is essential for maintaining environmental resilience, flood protection, and long-term infrastructure performance.

Our solutions integrate both traditional and sustainable engineering techniques to support the safe conveyance, attenuation, and infiltration of surface water, while also promoting ecological enhancement. Traditional systems such as culverts, concrete channels, and headwalls are proven methods of controlling water flow, but when used in isolation, they often fall short in terms of ecological value, long-term sustainability, and adaptability to climate pressures.

Our approach combines robust structural elements, like reinforced earth headwalls, geogrids, geoslope systems, and gabion reinforcements, with green infrastructure techniques, including SuDS (Sustainable Drainage Systems), vegetated attenuation ponds, and Rootlok vegetated retaining walls. These systems are designed to slow, filter, and absorb surface water, reducing peak flows, improving water quality, and minimising erosion and pollution risks.

Vegetated headwalls form a key part of our offering, encouraging natural infiltration and reducing the burden on traditional drainage systems. By integrating these features into water-sensitive landscapes, we not only manage runoff more effectively but also enhance biodiversity, stabilise soils, and reduce hydrostatic pressure, a common contributor to retaining wall failure.

For high-flow or flood-prone environments, gabions and gabion mattresses provide added reinforcement, particularly in areas requiring both erosion control and flexible adaptation to changing water conditions. These systems allow water to pass through while retaining structural integrity, making them ideal for headwalls, outfalls, embankments, and culvert outlets.

Our headwall solutions are suitable for a wide range of applications, including urban developments, infrastructure projects, ecological restoration schemes, and public realm enhancements. We work closely with consultants, local authorities, contractors, and environmental bodies to develop site-specific strategies that balance functionality with sustainability.

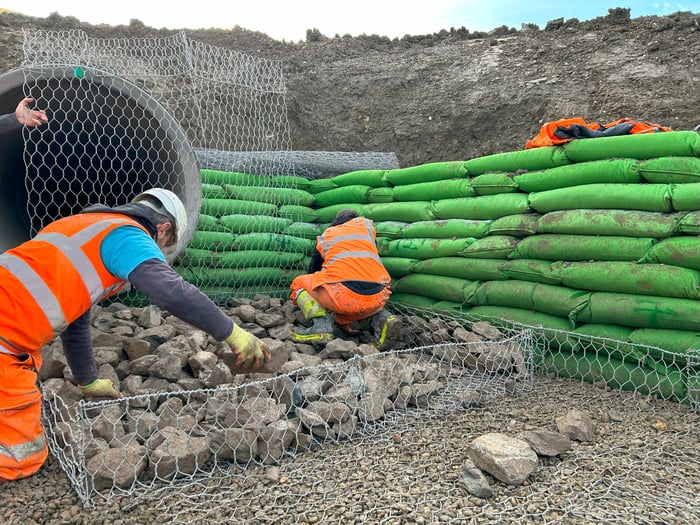

20250110_121952556_iOS-1

droplet-solid-02Minimal surface run off

Vegetated solutions like Rootlok walls and rain gardens enhance infiltration, reduce surface runoff, and improve water quality.

water-solid-02Reduced flood risk

Our sustainable drainage techniques help mimic natural hydrological processes, reducing flood risk and easing pressure on existing drainage networks.

hill-rockslide-solid-02Stabilisation
Reinforced earth structures with geogrids and geomesh stabilise soil, allowing for safer drainage and reduced risk of wall or embankment failure.

shield-halved-solid-03
Flexible reinforcement

Gabions and mattresses provide flexible reinforcement, adapting to changes in water pressure and flow while preventing erosion and soil loss.

clock-solid-03
Long term resilience

All solutions are tailored for long-term resilience, supporting biodiversity, filtering pollutants, and helping meet regulatory and climate adaptation goals.

CQQU1263 - edit
20250110_121952556_iOS-1
FSRI3390
35f48dc0-a144-4b5e-bfac-0b898786a44e
Veg headwall
Headwalls & Culverts
Higham Lane Headwalls 3
Rakes Park Rootlok Installed

Our solutions

Rootlok - Brown - White

A sustainable, engineered solution ideal for headwalls and water management applications, providing structural reinforcement to earthen banks and outfalls while promoting infiltration, reducing erosion, and supporting a vegetated, low-impact finish.

Combining proven structural performance with a fully vegetated finish, Rootlok is particularly well suited for use around headwalls, culvert outlets, and drainage channels, as well as in wider flood mitigation and watercourse management projects.

Conventional water infrastructure – such as concrete headwalls and channels – is effective in managing flows but often lacks ecological value or adaptability to changing environmental conditions. Rootlok offers a forward-thinking alternative, providing the structural integrity of a retaining wall with the visual and environmental benefits of a natural green solution.

The system uses interlocking, geosynthetic bags filled with engineered soil, forming a strong and durable structure that supports long-term vegetation.

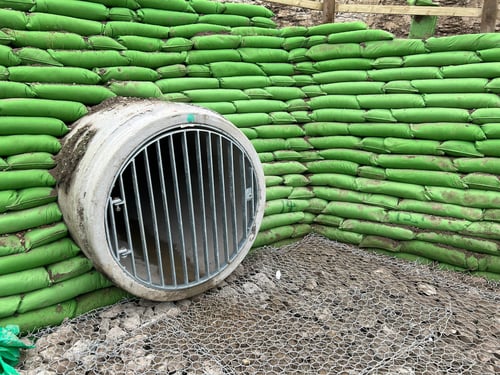

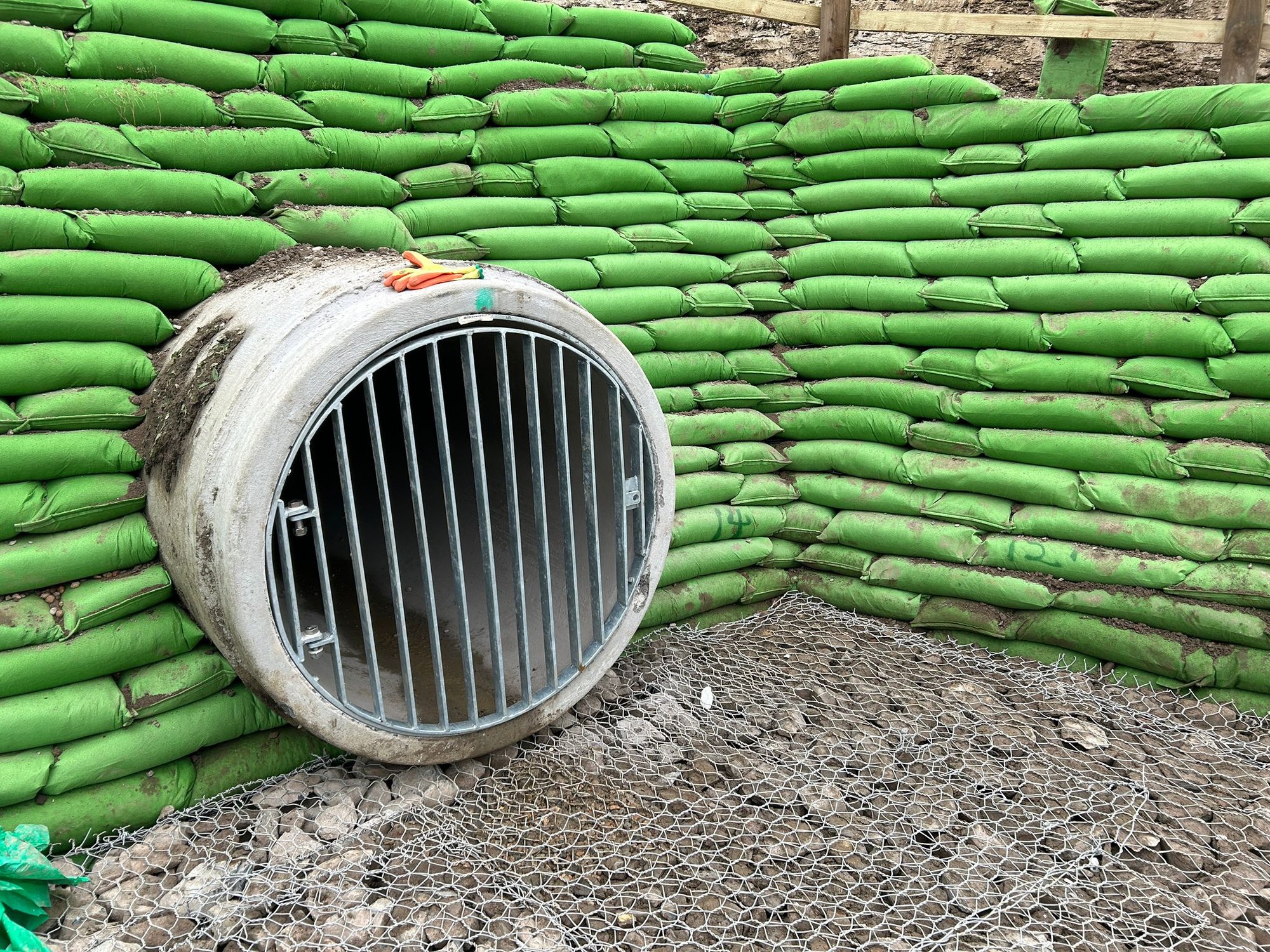

In headwall applications, Rootlok delivers robust erosion protection at pipe outfalls and culvert interfaces, where fluctuating water levels and fast-flowing conditions can undermine traditional designs.

The system’s permeable face allows water to pass through, relieving hydrostatic pressure and reducing the risk of structural failure – a common issue with impermeable retaining structures.

Providing the following benefits

shield-halved-solid-03
Stability

Reinforces culverts, outfalls, and embankments whilst supporting dense vegetation for a natural, sustainable appearance.

hill-rockslide-solid-02
Reduces erosion

Controls water flow, filters sediment, and prevents scouring and soil loss in high-risk areas.

bug-solid white-01
Supports biodiversity

Provides a growing medium for native planting, enhancing site ecology and supporting wildlife habitats.

CQQU1263 - edit

Learn more about Rootlok

Rootlok also plays a key role in sustainable drainage systems (SuDS) by supporting natural infiltration and slowing surface water runoff. It filters sediment and pollutants, helping to improve water quality before it reaches nearby rivers, streams, or wetlands. This makes Rootlok an excellent choice for both urban and rural schemes, where water management must be balanced with environmental goals and regulatory requirements.

Whether installed as part of a new project or retrofitted to upgrade existing drainage infrastructure, Rootlok provides contractors, designers, and local authorities with a flexible, low-impact, and climate-resilient solution to modern water management challenges.

Gabions & Mattresses-04

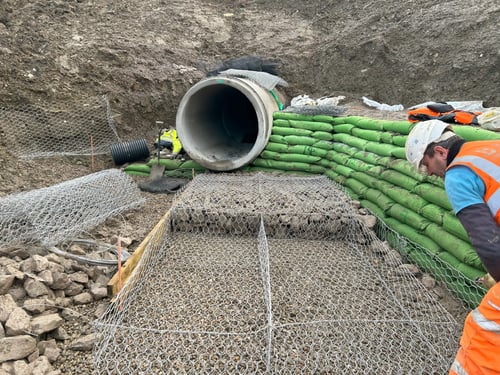

Our Gabion Mattress systems provide a durable, highly adaptable solution for erosion control and hydraulic protection in water management and headwall environments.

Built from double-twist steel wire mesh and filled with graded gabion stone, these low-profile systems offer outstanding performance in high-flow, flood-prone, and ecologically sensitive areas. Gabion mattresses are designed to be installed along the base of rivers, channels, and outfall areas, where they help to dissipate water energy, protect vulnerable soils, and prevent undermining of infrastructure such as culverts and headwalls.

Their flexibility allows them to conform to changing ground conditions while maintaining contact with the surface, ensuring continuous protection even in areas of settlement or scouring.

Ideal for use in conjunction with gabion headwalls, Rootlok vegetated systems, and other green infrastructure components, gabion mattresses integrate seamlessly into larger drainage and erosion control schemes. They are frequently specified for applications including revetments, spillways, flood channels, wetland edges, and bank protection works, where both structural performance and environmental sensitivity are key.

The longevity and performance of gabion mattresses are directly linked to the quality of their components. That’s why we use hard-wearing, frost-resistant Class 6G stone, graded between 100–200mm, ensuring excellent interlock, drainage, and mass stability. Combined with durable galvanised or PVC-coated steel mesh, these systems provide long-term, low-maintenance protection, even in aggressive water environments.

Providing the following benefits

droplet-solid-02-1
Highly permeable

Stone infill allows water permeability while maintaining mass and structural integrity, minimising hydrostatic pressure.

screwdriver-wrench-solid-03
Low maintenance

Withstands extreme weather, floods, and freeze-thaw cycles with minimal upkeep over time.

shield-halved-solid-03
Flexible reinforcement

Gabions mattresses provide flexible reinforcement, adapting to changes in water pressure and flow while preventing erosion and soil loss.

20250110_135353414_iOS

Learn more about Gabions & mattresses

In addition to their technical benefits, gabion mattresses offer a natural, rustic appearance that blends well with the surrounding landscape. This makes them a popular choice in environmentally sensitive or publicly visible sites, including nature reserves, heritage settings, and recreational waterways, where hard engineering must also meet aesthetic and ecological standards.

Experienced in-house technical team

DESIGN - MANUFACTURE - INSTALL

We provide end-to-end solutions for geotechnical and erosion control challenges, offering expertise across design, supply, installation, and manufacturing.

Our experienced in-house team ensures a seamless process from concept to completion, delivering sustainable, bioengineered designs tailored to each project while ensuring compliance with industry standards.

With highly skilled chartered engineers on board, we guarantee expert technical support and design services, enabling prompt and efficient responses to all your needs. By handling every aspect of your project in-house, we streamline operations, maximise efficiency, and enhance long-term performance.
